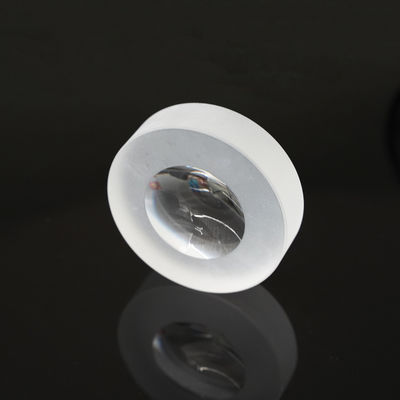

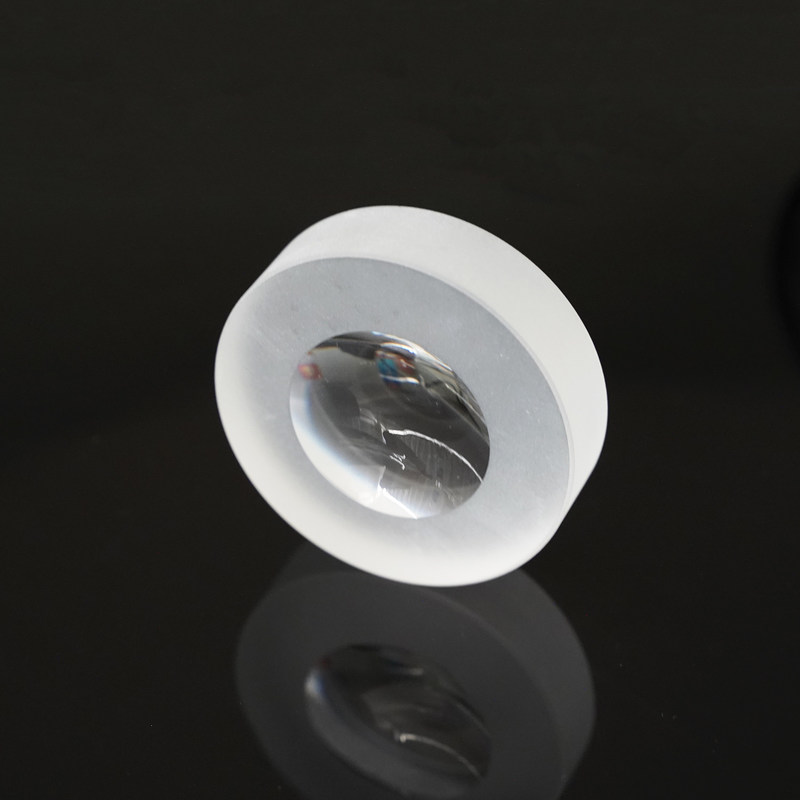

Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens

Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens
Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens

Büyük resim :  Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens

Ürün ayrıntıları:
Menşe yeri: Şangay, Çin
Marka adı: Advance
Model numarası: 001
Ödeme & teslimat koşulları:
Min sipariş miktarı: 10 adet
Fiyat: $100.00/Pieces 10-99 Pieces
Ambalaj bilgileri: Vakum + EVA + Karton
Yetenek temini: Aylık 10000000 Adet / Adet
İletişim

Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens

Açıklama
Lens Malzemesi: Bardak Görme Etkisi: merceksi
Kaplama: HMC, istek üzerine Lens rengi: Açık
Malzeme: BK7 ve diğer optik cam, kuvars, safir, Ge, Si, ZnSe, CaF2 vb. Çap Toleransı: +/- 0.005mm
Yüzey doğruluğu: Sayı=1~0.5 Merkez kalınlık toleransı: +/- 0.001 mm
Odak Uzaklığı Toleransı: +/-% 1 Yüzey kalitesi: 10/5~60/40

Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens

Polished glass lenses are manufactured from pressed blanks by using a polishing process. We also offer post‐processing centering, coating, lens painting (sumi), cementing (balsam) per your requirements.

Specification
Products Name Optical Glass Lens
Materials BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc
Diameter 1.5~300mm
Radius R0.8mm-∞
Focal length -30000mm~+30000mm
Center thickness tolerance +/-0.01mm
Diameter tolerance +/-0.005mm
Focal length tolerance +/-1%
Surface accuracy N=1~3
Irregularity ΔN=0.1~0.5
Decenter 3''~1''
Surface quality 10/5~60/40
Coating Upon request
Application area Imaging,Lighting,Laser etc
Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens 1
Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens 3
Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens 5
Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens 7
Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens 9
Recommend Products
Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens 11
Company Profile
Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens 13

  Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions.
Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens 15
Exhibition
Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens 16
Packing & Delivery
Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens 18
Optical grade PMMA eyeglasses material plano-concave structure oem led optical lens 20
